1. Why Should I Choose A Tube Laser Cutting Machine?
Before diving into machine configurations such as chucks and automation, many buyers first ask this question. Compared with conventional techniques like sawing, drilling, milling, or manual plasma cutting, a modern fiber tube laser cutting machine offers several major advantages in three aspects:

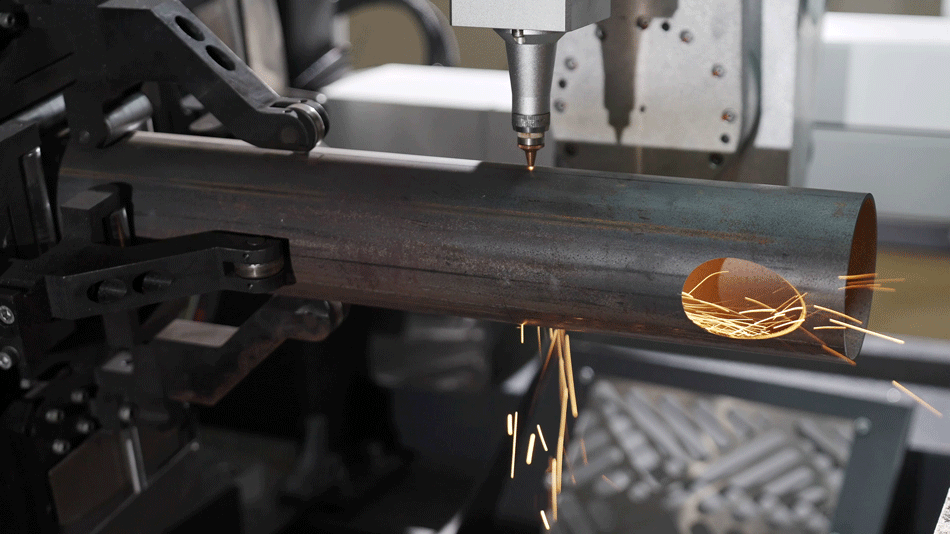

A. Cutting-off
- Smooth cut surfaces with up to 0.1 mm precision, no secondary finishing needed.
- Fully automatic cutting with no manual involvement.
- Supports various tube shapes with no end-cut limitations.
B. Hole & profile processing
- Non-contact cutting avoids workpiece damage.
- Flexible hole designs without mold restrictions.
- Automated operation improves workplace safety.
C. Efficiency
- Cutting and punching in one step, no extra processes required.
- One operator can run one machine easily, reducing labor costs.
2. Key Components
A. What is pneumatic Chuck?
The chuck system is used for clamping and centering the tube to keep it securely aligned during high-speed rotation, enabling precise rotary feeding for cutting patterns at any angle. In multi-chuck configurations, it also supports tube pulling and pushing while coordinating movements to avoid interference with the cutting head.
Pneumatic chucks are the industry-standard configuration and are widely used for most batch processing of standard tube. It uses an air cylinder to drive sliding jaws that clamp the tube securely in place. Compared with electric chucks,it has following advantages:
- Relatively simple mechanical structure
- Lower maintenance cost compared with complex clamping systems
- Fast clamping speed with stable holding force

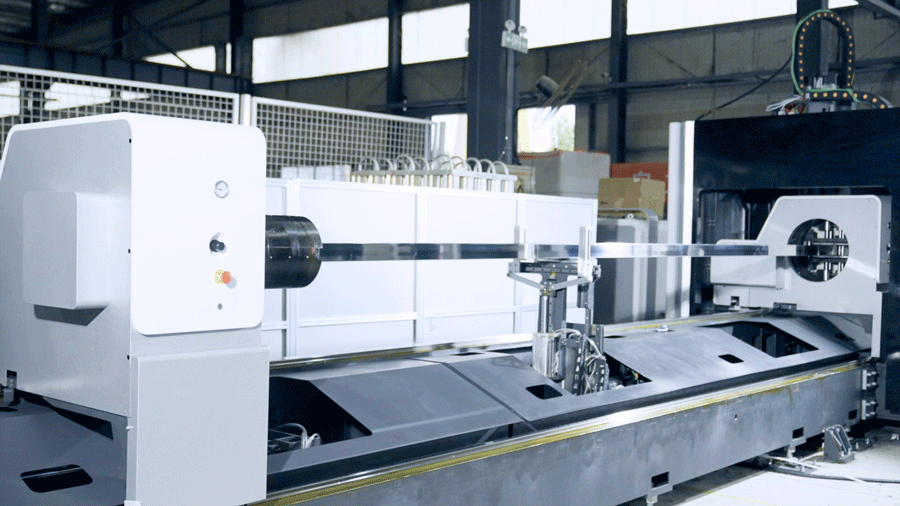

2-Chuck vs 3-Chuck vs 4-Chuck laser: how to choose?
- 2-Chuck System: The standard setup, typically consisting of one main chuck for rotation and feeding, plus a supporting chuck for stability. Suitable for small and thin tube processing in industries such as metal furniture, signage, and light fabrication.
- 3-Chuck System: Designed for improved tailing control and higher material utilization, allowing shorter or zero cutting tails. Ideal for industries requiring efficient batch cutting of medium-length parts, such as fitness equipment, automotive components, and general tube fabrication.
- 4-Chuck System: Beyond achieving true zero-tail cutting, this advanced configuration is especially effective for full-length processing of heay and long tubes, providing consistent support and accuracy throughout the entire process. Best suited for high-end manufacturing sectors working with expensive materials or complex structures, including steel construction, shipbuilding, aerospace, and heavy-duty structural fabrication.
Key parameter: rotation speed & acceleration
Higher chuck rotation speed means better dynamic performance and faster processing. Under the same conditions, a tube laser running at 100 rpm can deliver up to 25% higher cutting efficiency compared with a machine operating at 50 rpm.
B&B new lauched Sk series tube laser cutting machine delivers a maximum acceleration of 2.7G and a maximum rotational speed of 260 r/min, enabling stable and efficient operation under high-speed conditions. The processing efficiency far exceeds that of similar products in the market.
B. Cutting unit & crossbeam structure
The cutting unit is built on a highly stable crossbeam system. It features a cantilever-style beam design, manufactured through an integrated process of welding, heat treatment, and precision machining. Advanced heat treatment ensures the beam delivers:
- High structural strength
- Excellent machining accuracy
- Strong rigidity for stable cutting performance
C. Support roller system (tube support rollers)
The support roller system plays a critical role in maintaining cutting stability, especially when processing long or heavy tubes. By providing continuous support during rotation and feeding, the rollers prevent tube sagging, vibration, and surface scratches.
- A well-designed roller unit improves:
- Cutting accuracy on long workpieces
- Overall machine stability at high speed
- Protection of finished tube surfaces
This component is essential for high-quality tube cutting in large-format or high-volume production.
The N Series uses a servo follow-up support system that automatically adapts to the tube profile, reducing vibration and improving cutting accuracy.
The unloading side includes a floating support plate that adapts to tube size during rotation and also provides smooth part support for long workpieces during unloading.
3. Software and More Function
Although the precision and efficiency of laser cutting are highly attractive, many people still view it as just a more expensive and fancy saw. In fact, it’s real productivity advantage comes from its software intelligence and advanced process features.
Nesting software:
Nesting software serves as the critical bridge between design and production, intelligently Nesting software is the essential link between design and production, intelligently arranging parts on raw tubes to minimize waste and maximize cutting efficiency. With the right system, even beginners can achieve professional results—simply import the drawing, adjust key parameters, and start cutting with one click.
B&B Tube, developed by B&B experienced CAM team, supports Tekla import, automatically applies optimal cutting settings, and enables one-click programming for piercing, cutting, and slotting on tubes of any shape. Flexible nesting and sorting options make it easy to handle complex geometries and a wide range of production requirements.
Bevel cutting:
Traditional tube cutting often leaves large gaps at joints, increasing welding workload and requiring extra filler or secondary edge preparation. This not only affects weld quality but also raises production costs.
With integrated bevel cutting up to ±45°, the system supports multiple programmable joint types, allowing tubes to be cut and welded directly with minimal gap. This reduces filler usage, eliminates additional processing, lowers welding difficulty, and significantly cuts labor and material costs while meeting high-quality fabrication requirements.
Mutiple automation solution compatible：
The tube laser cutting machine can be equipped with a wide range of automation options, including bundle loading, semi-automatic&automactic loading and unoloading, Sorting & Unloading. These solutions help to
- Reduced manual labor and heavy lifting
- Higher throughput with continuous production
- Unattended night-time operation for maximum efficiency
- Fewer surface scratches and better part protection
Improved safety and flexible setups for different factories
Next Step
The right tube laser cutting machine isn’t just about cutting—it’s about turning designs into finished parts faster, cleaner, and with less waste. If you’re still deciding, don’t start with brand names—start with your tube list. for a quick evaluation and a tailored solution for your production needs.
